Top-K on a wafer

The Cerebras Kernel Challenge was a three-day window to put an exact Top-K kNN kernel on WSE-2. Start: 9:38 PM EST, April 28. Finish: 8:10 PM EST, May 1.

The job was not approximate search. Every PE owned a shard of D, computed exact squared L2 distances to a query q, and the grid had to agree on the same K winners as a NumPy oracle — including ties.

The useful result was the cycle count. Most of it came from treating distance as a vector FMAC loop, and from refusing one Top-K method for every K.

Baseline

~160K cycles~25K

K = 256

~851K cycles~318K

The grid

The kernel runs on a P × P PE rectangle. PE (px, py) owns rows starting at (py * P + px) * rows_per_pe. Padding is a valid_count mask, not a guess.

The host copies D, D_norms, and valid_count to every PE. It copies q only to PE (0,0). The device broadcasts that query across the top row, then down each column.

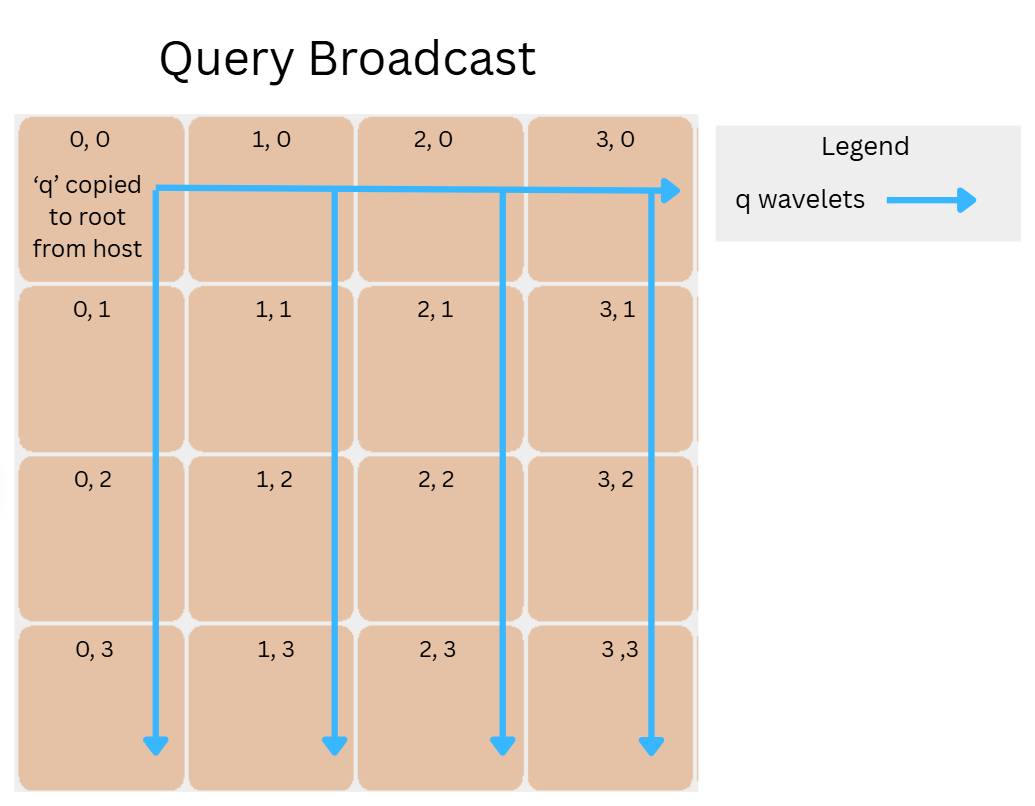

Query broadcast: q starts at PE (0,0), moves across the top row, then down each column. — Query broadcast. q starts at (0,0), fans out on x, then down y.

After compute, each row gathers local top-K west to the row root at px=0, which merges P·K candidates down to K. Column 0 then gathers those winners north to PE (0,0) for the final top-K.

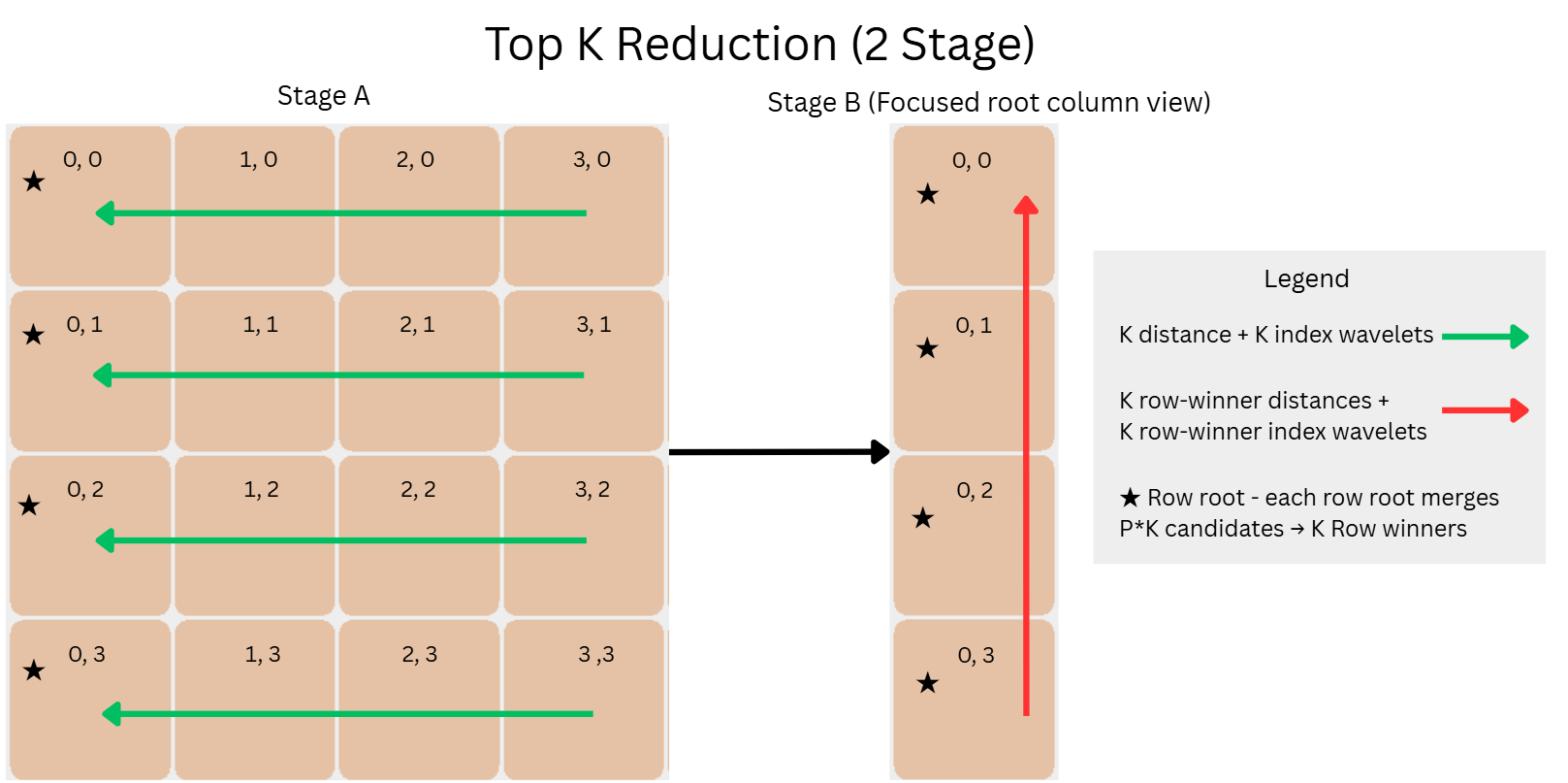

Two-stage top-K reduction: row gather west to column 0, then column gather north to PE (0,0). — Two-stage reduction. Rows collapse west. Column 0 collapses north.

Distance first

Every case computes exact squared L2. The host folds ||q||² into the packed row norms, so each PE only has to add the dot-product term.

||D_i − q||² = ||D_i||² + ||q||² − 2 · (D_i · q)

Exact squared L2, with the query norm already folded into D_norms.

The dominant loop is distance accumulation: one vector @fmacs per feature over local rows. The first FMAC starts from D_norms, so there is no initialization sweep.

When d_dim is divisible by 8, host packing makes the DSD stride 8. I tried 2, 4, 8, and 16. Eight won.

25.1k / (128 × 32) ≈ 6.1

Baseline: about 6.1 cycles per local matrix element.

One K, several methods

Local selection changes with K because no single method won everywhere.

| K | Local method | Why | | --- | --- | --- | | 1 | Track the best row | A linear scan is enough. | | ≤ 16 | Sorted insertion | Cheap, and already sorted for the reducer. K = 16 is specialized to cut loop overhead. | | Full local K | Keep every valid row | For k_large, heap-sort the stream so reducers merge sorted runs. | | Larger, not full | Max-heap of size K | Avoids shifting up to K entries on every insert. |

Sorted insertion is the right small-K trade. The heap is the right large-K trade. Using one of them for both would have left cycles on the table.

Where the fabric actually hurts

During row gather, each PE sends K distance wavelets and K index wavelets toward px=0. The hot edge is next to the row root: traffic from the other P − 1 PEs can all cross it.

2 · K · (P − 1)

Worst-case candidate wavelets on the edge next to a row root.

Column gather has the same shape for row winners. Small-K cases stay compute-bound. At K = 256, root-side merge work and candidate movement finally show up.

Ties have to be boring

Each candidate carries a global index, (py · P + px) · rows_per_pe + local_row. Every stage uses the same comparison: smaller distance wins; if distances are equal, smaller index wins.

What I took away

Three days on WSE-2 was enough to make the same point Twin did, just in cycles instead of milliseconds: the interesting work is rarely a new algorithm. It is making the machine honest about what it is actually paying for.

Exact is cheaper than it looks if the algebra is honest. Folding ||q||² into the packed norms removed PE work without making the broadcast heavier.
Layout is a cycle count. Blocking D so the FMAC stride is 8 did more for the baseline than any routing trick.
SRAM is the real compiler. Splitting distance and index gathers, and picking a different Top-K structure per K, were both memory decisions wearing an algorithm costume.
Correctness is a total order. Once every stage ranks by (distance, global_index), the fabric can be sloppy about when wavelets arrive and still match the oracle.
